CHEZY SIDE FLOW CONCEALED FLOOR TRAP

  • THE ADVANTAGES

    WHY CHOOSE CHEZY SIDE FLOW CONCEALED FLOOR TRAP?

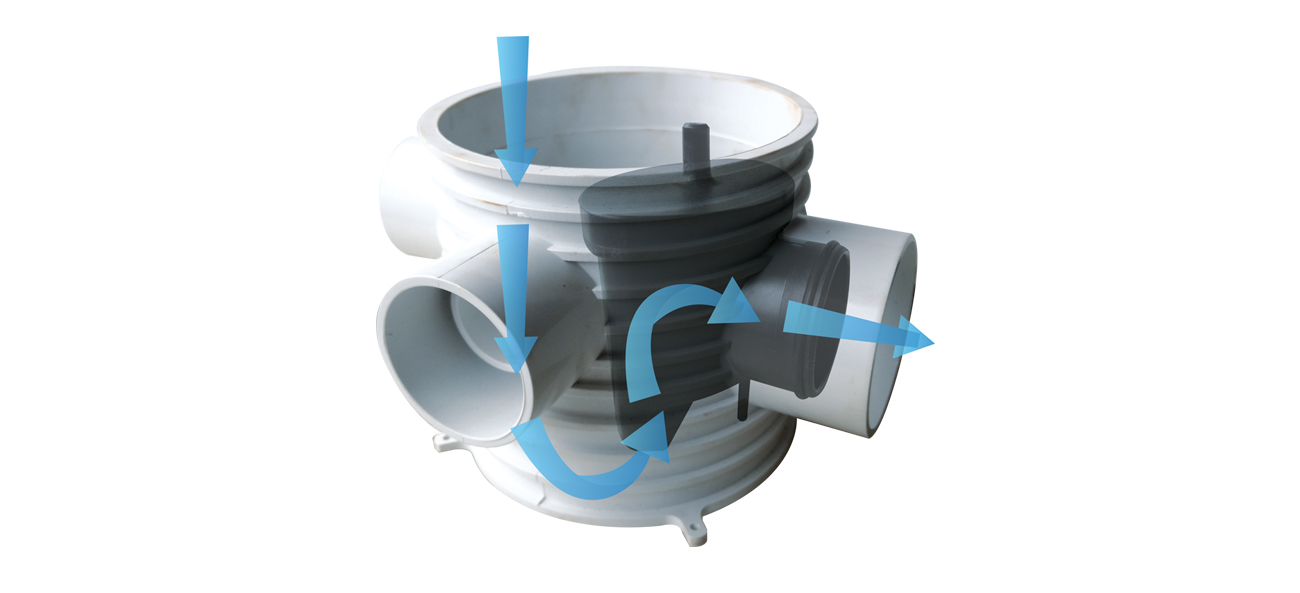

    This Chezy Side Flow Concealed Floor Trap has flow rates in excess of 60 litres/min and has a 50mm outlet pipe, so that the whole trap, outlets and inlet pipes into the concealed side flow can be concealed in the floor slab. Maintenance and rodding of the pipe is easy. This can either be done by removing the cap of the trap insert or by totally removing the whole trap insert.

    All pipes coming in or outlets are concealed in the slab, allowing for a larger space below the slab or eliminating the use of false ceilings.

  • FEATURES

    The ability to remove the trap device, allows for more space for servicing and maintenance purposes.

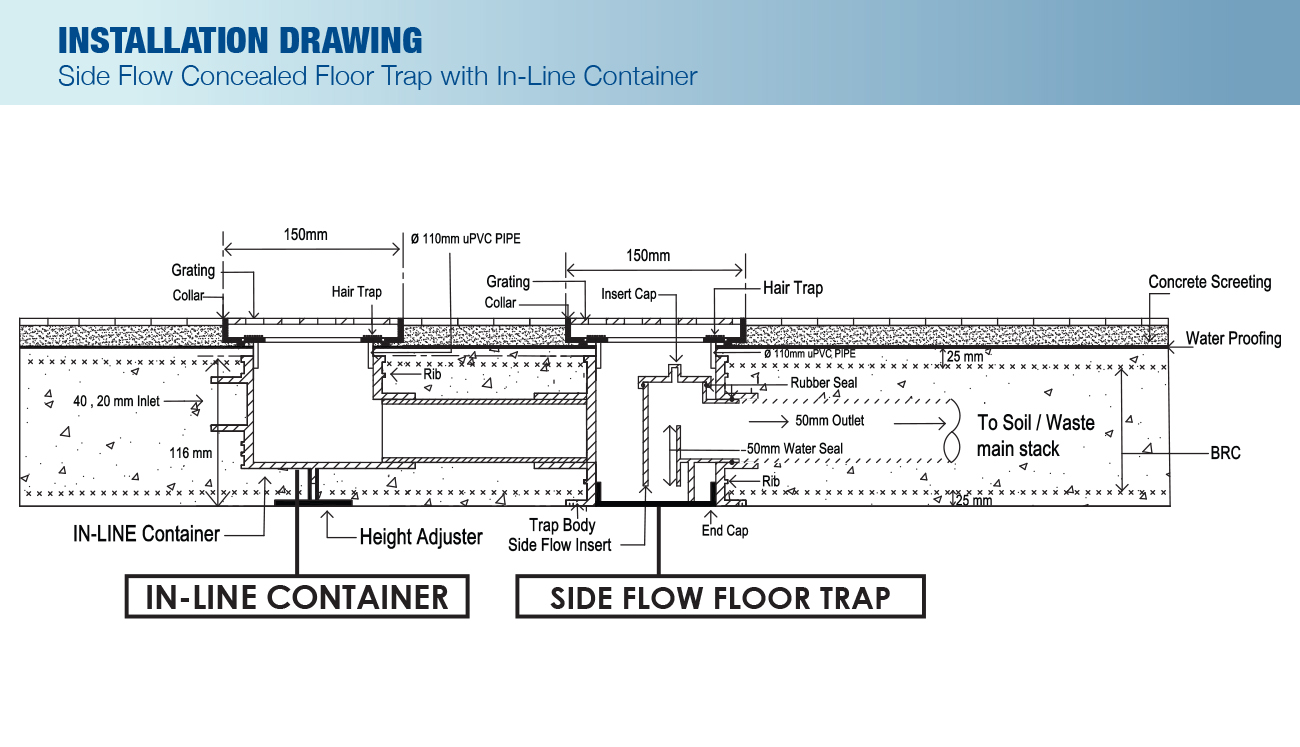

    The Chezy In-line Container with adjustable support allows the flexibility of being joined directly to the floor trap or being joined to each other in series.
    This allows for draining larger areas like balconies, car parks, commercial toilets and many more.

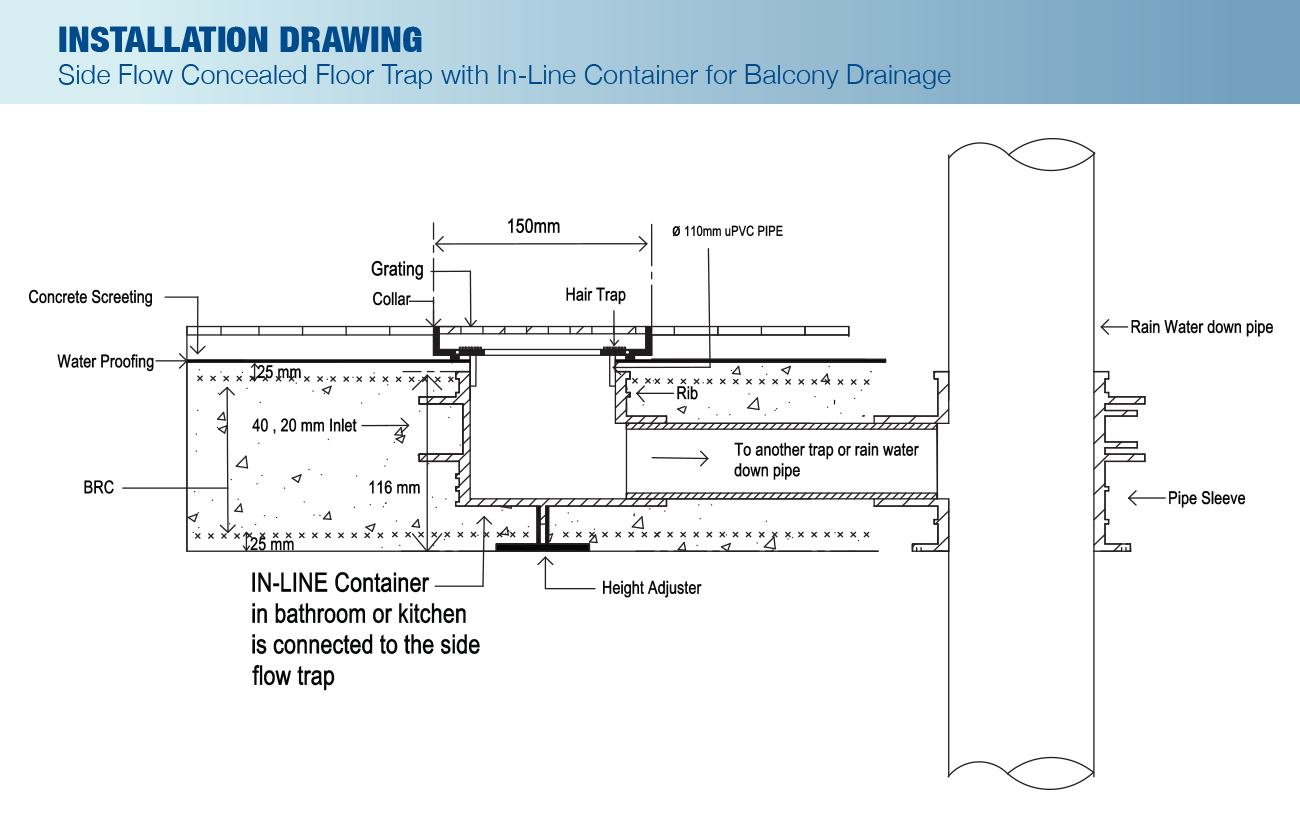

    BALCONY DRAINAGE

    The Chezy In-line Container comes in 2 sizes with 50mm (2 inch) outlets.
    The 110mm (4 inch) body is used with a 150mm (6 inch) grating and the 82mm (3 inch) body that accomodates a 100mm (4 inch) grating.
    The In-line Containers without the trap can be used in the dry part of the bathroom or kitchen and connected to the floor trap.

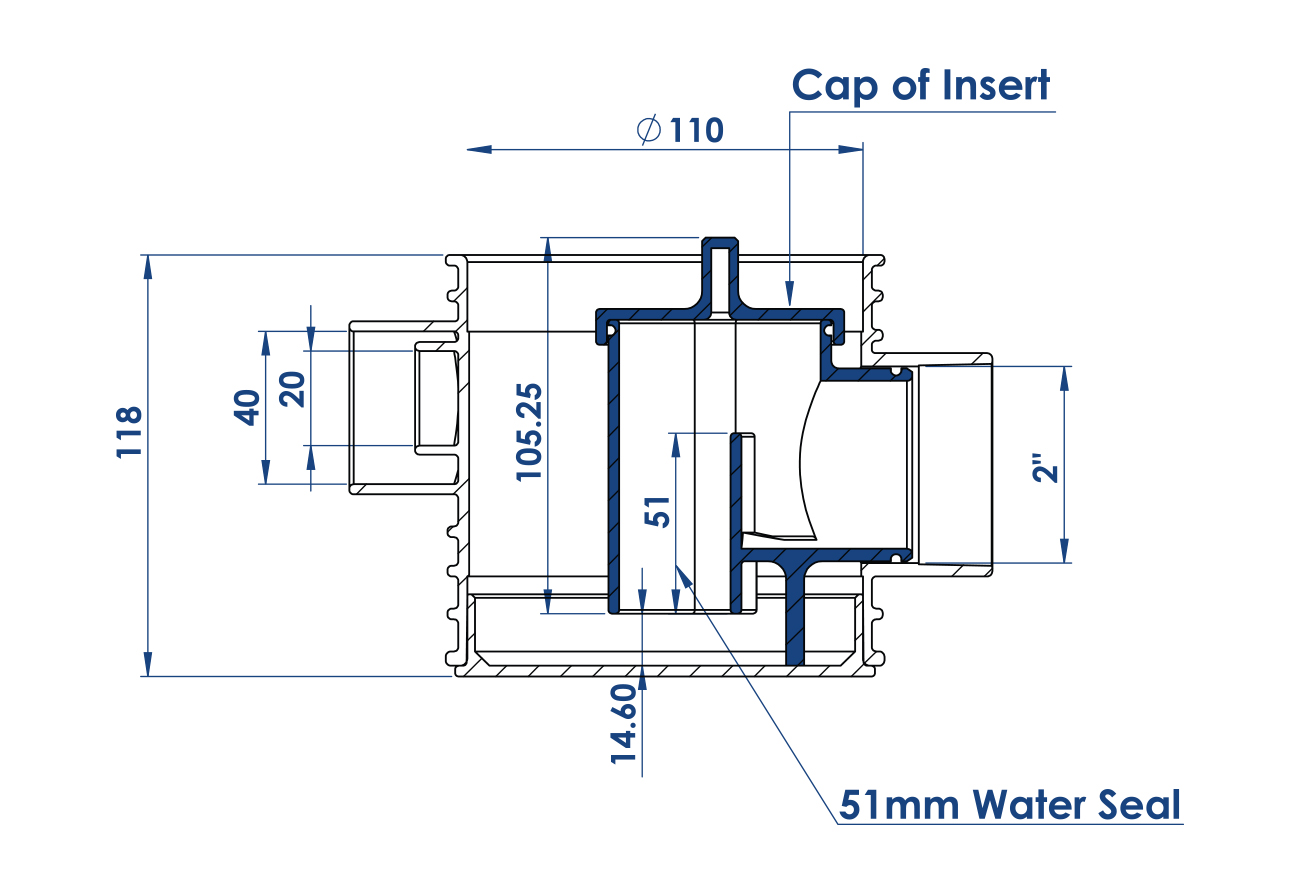

  • SIZE & DIMENSIONS

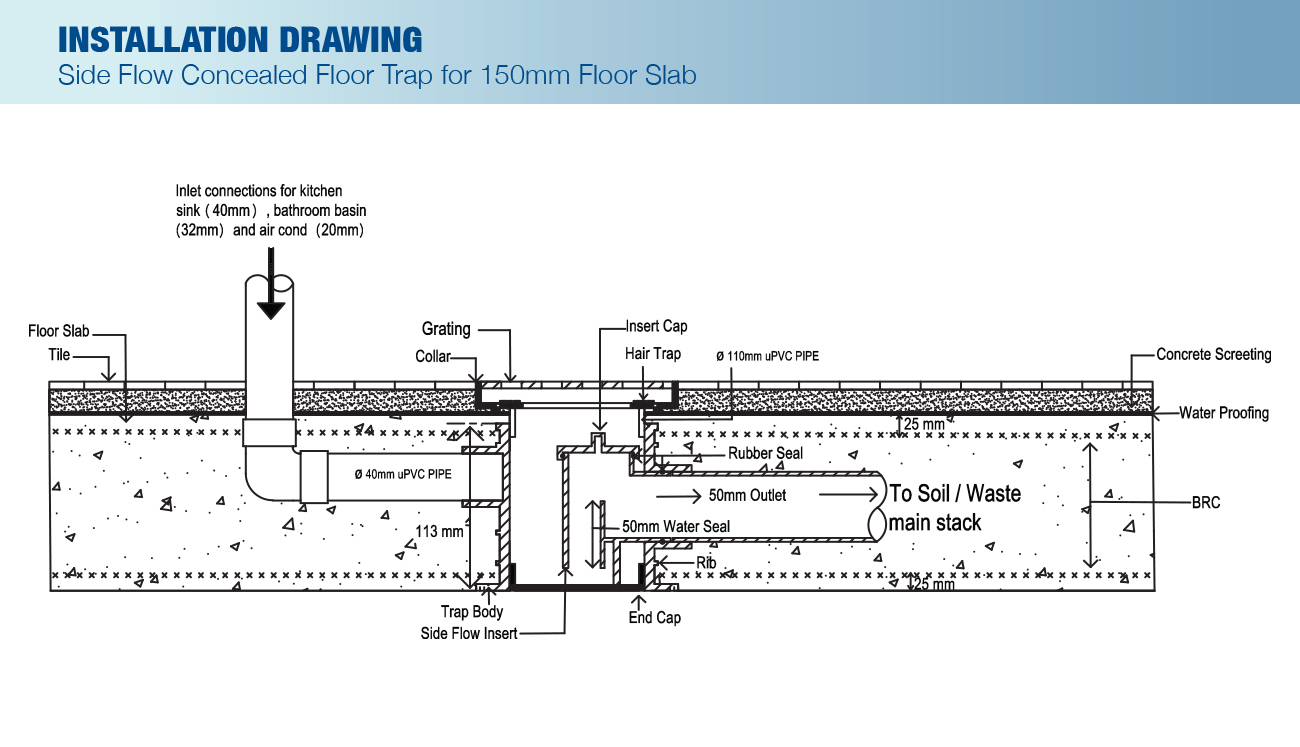

  • INSTALLATION DRAWING
