CHEZY 6-THREAD (六圓圈) SUPERIOR MECHANICAL FITTINGS SYSTEM

  • THE ADVANTAGES OF HDPE PIPES

    FATIGUE RESISTANCE

    - HDPE pipe is flexible and ductile, not rigid. It has outstanding resistance to fatigue.

    CORROSION RESISTANCE

    - It is resistance to biological growth. This means an extended service life and long- term cost savings.
    - Fewer fittings required due to pipe flexibility. Allowable bending radius of 20 to 25 times outside diameter of pipe.
    - Available in a wide range of thicknesses and pressure ratings to create an entire plumbing system.
    - The superior chemical resistance and “non-stick” surface combine to eliminate scaling and pitting and preserve the hydraulic characteristics throughout the pipe service life.

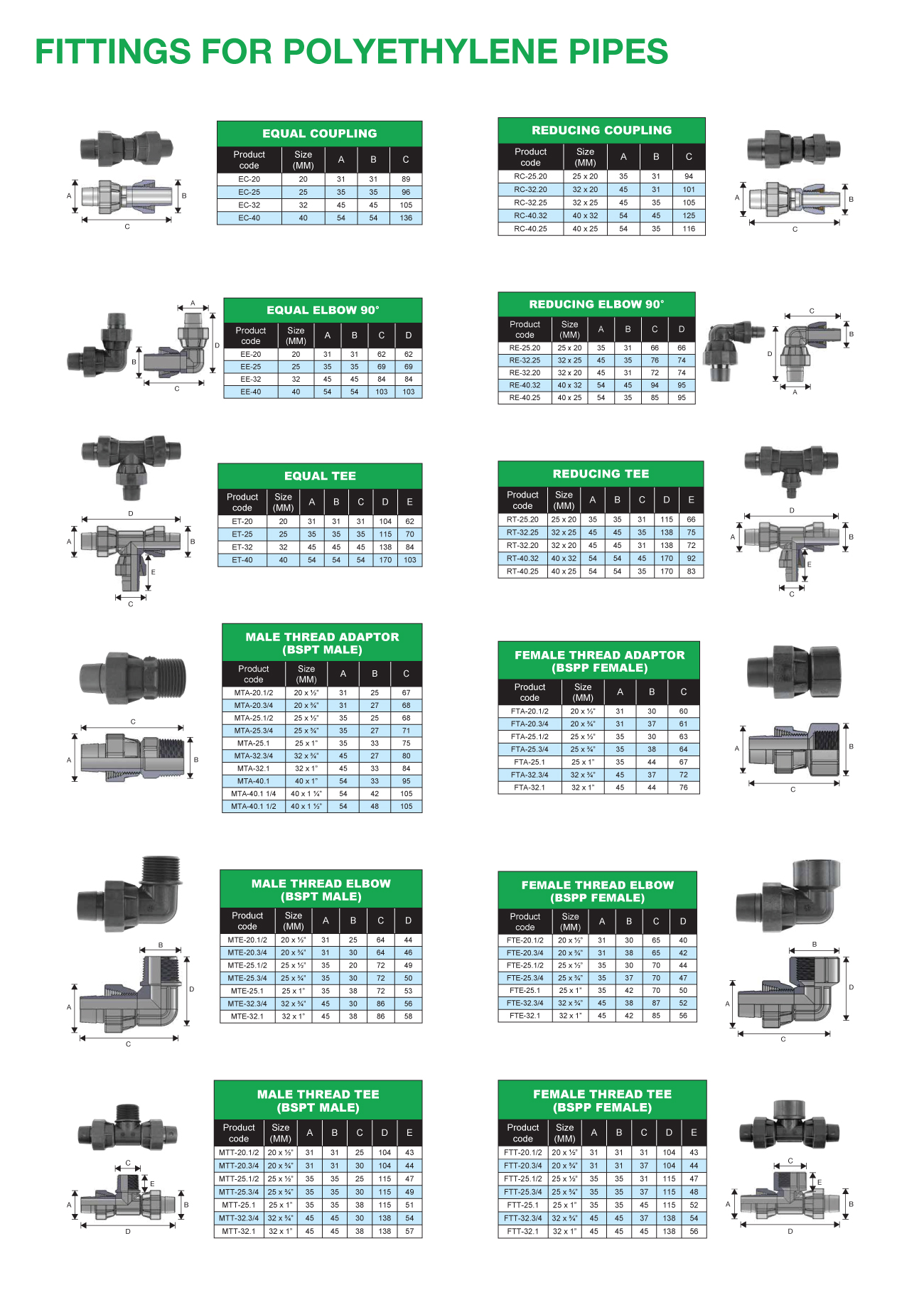

  • FITTINGS FOR POLYETHYLENE PIPES

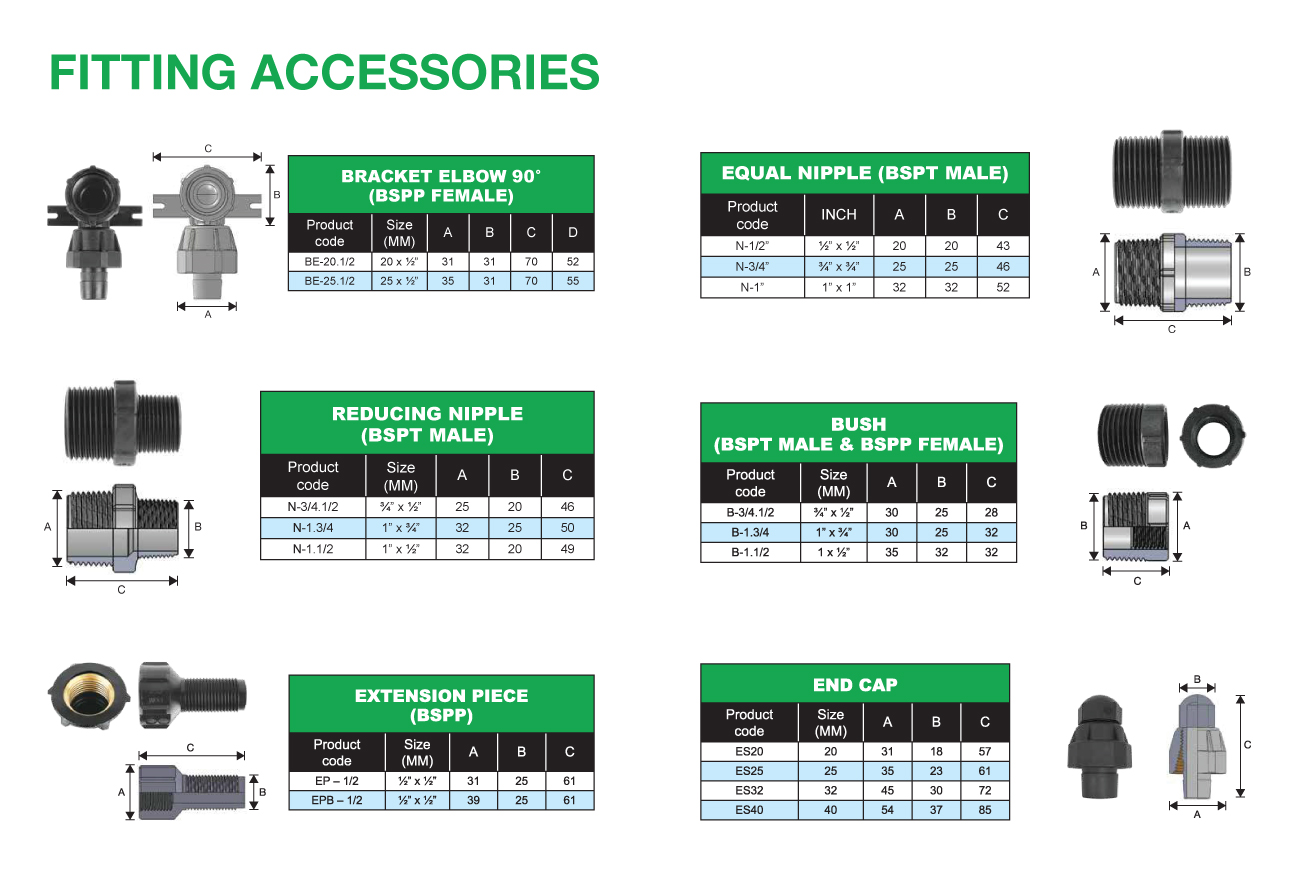

  • FITTING ACCESSORIES

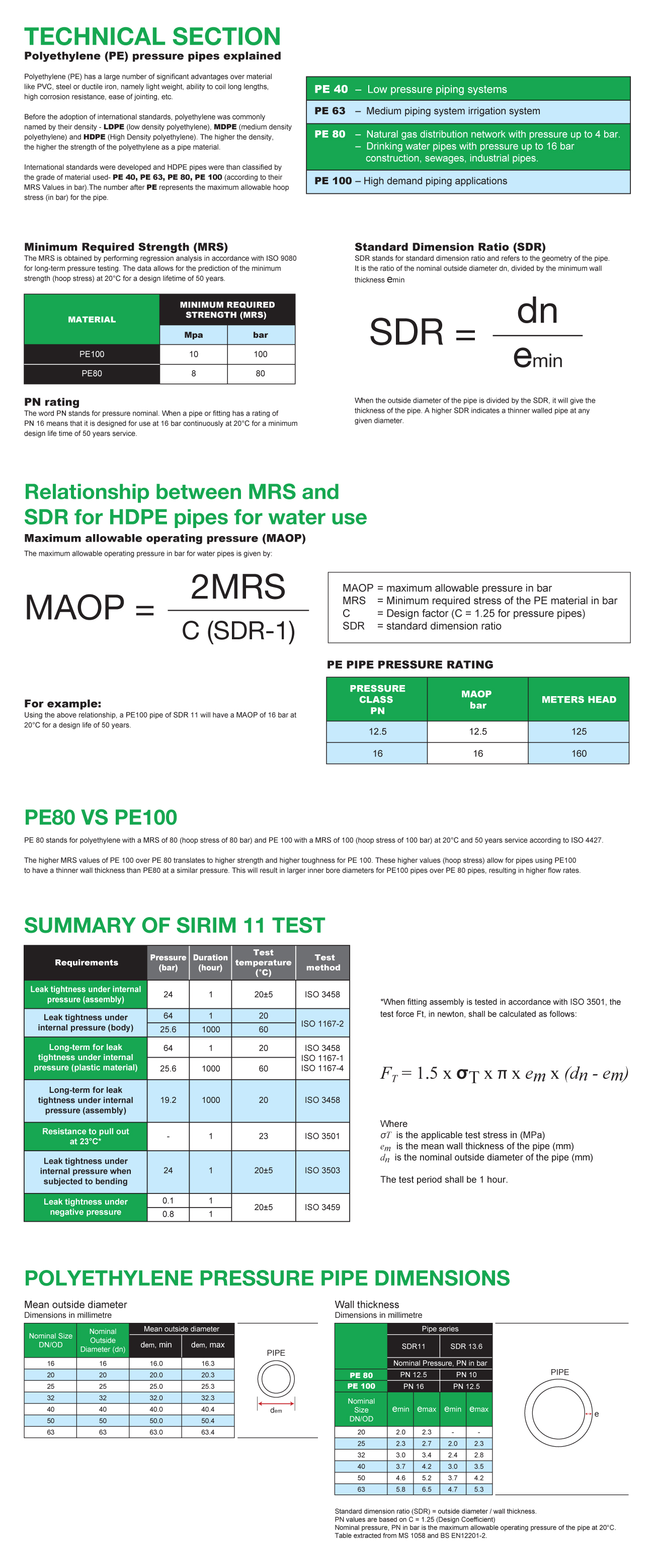

  • TECHNICAL INFORMATION

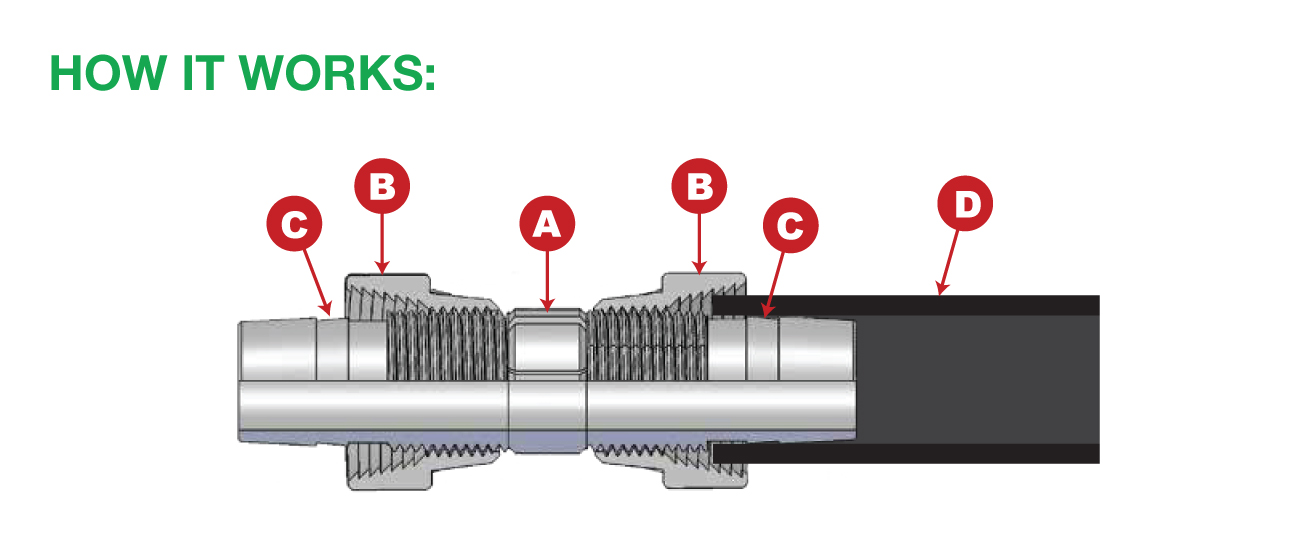

  • HOW IT WORKS

    • Fitting body A and nut B are manufactured from tough and impact resistant fibre reinforced nylon or polypropylene for long life.
    • Push barbs C inside of the pipe D until the fitting stops. Barbs C give support to the pipe wall and prevents disengagement after installation.
    • Turn Nut B to bite the pipe and compresses the pipe onto Barb C after tightening with pipe wrench resulting in a very water tight seal.
    • Ensure that there are 6-THREADS (六圓圈) visible behind the nut after tightening.

    THE CHEZY FITTING SYSTEM

    • The Chezy mechanical jointing system requires no special site equipment, no electricity required or skilled labour combined with the long life of the fitting making it the cost- effective choice.
    • Flexibility - it can be used for PN 12.5 and PN 16 pipes. Please ensure that you are using the correct pressure rated fittings.
    • Wide range of fittings for all Plumbing systems.
    • No compression rings, no circlip, no ‘O’ rings, no crimping, no solvent cement, no fusion, no PTFE tape – fast, leak proof and simple installation.
    • Excellent Hydraulic flow characteristics.
    • Light weight.
    • No scale built up on inside wall.
    • Corrosion resistance, suitable for all weather conditions.
    • Cost efficient joint with easy installation, takes less energy to perform the joints for better productivity.

    The Chezy mechanical fittings system affords a very cost effective and high-speed installation system.

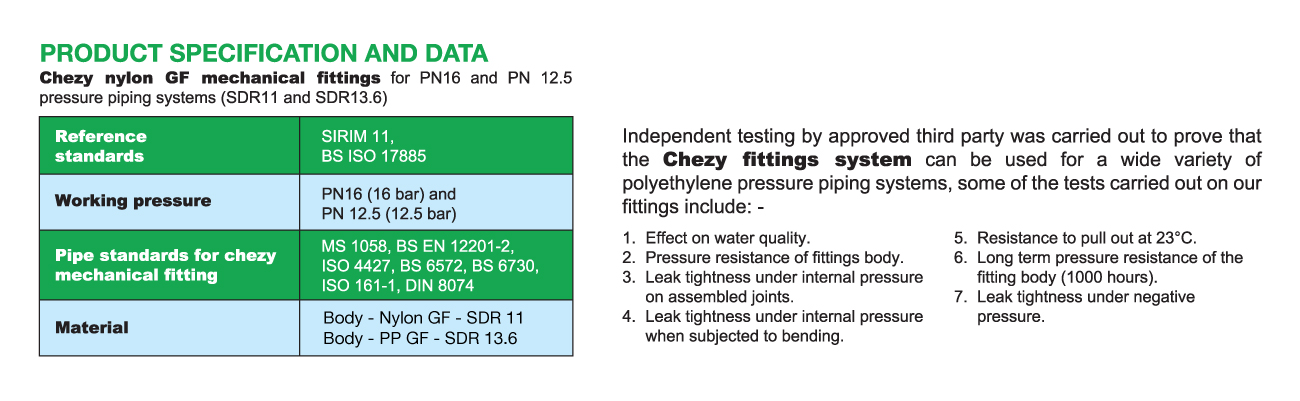

    The fitting has third party certification and are government approved for water portable systems.

  • PRODUCT VIDEO

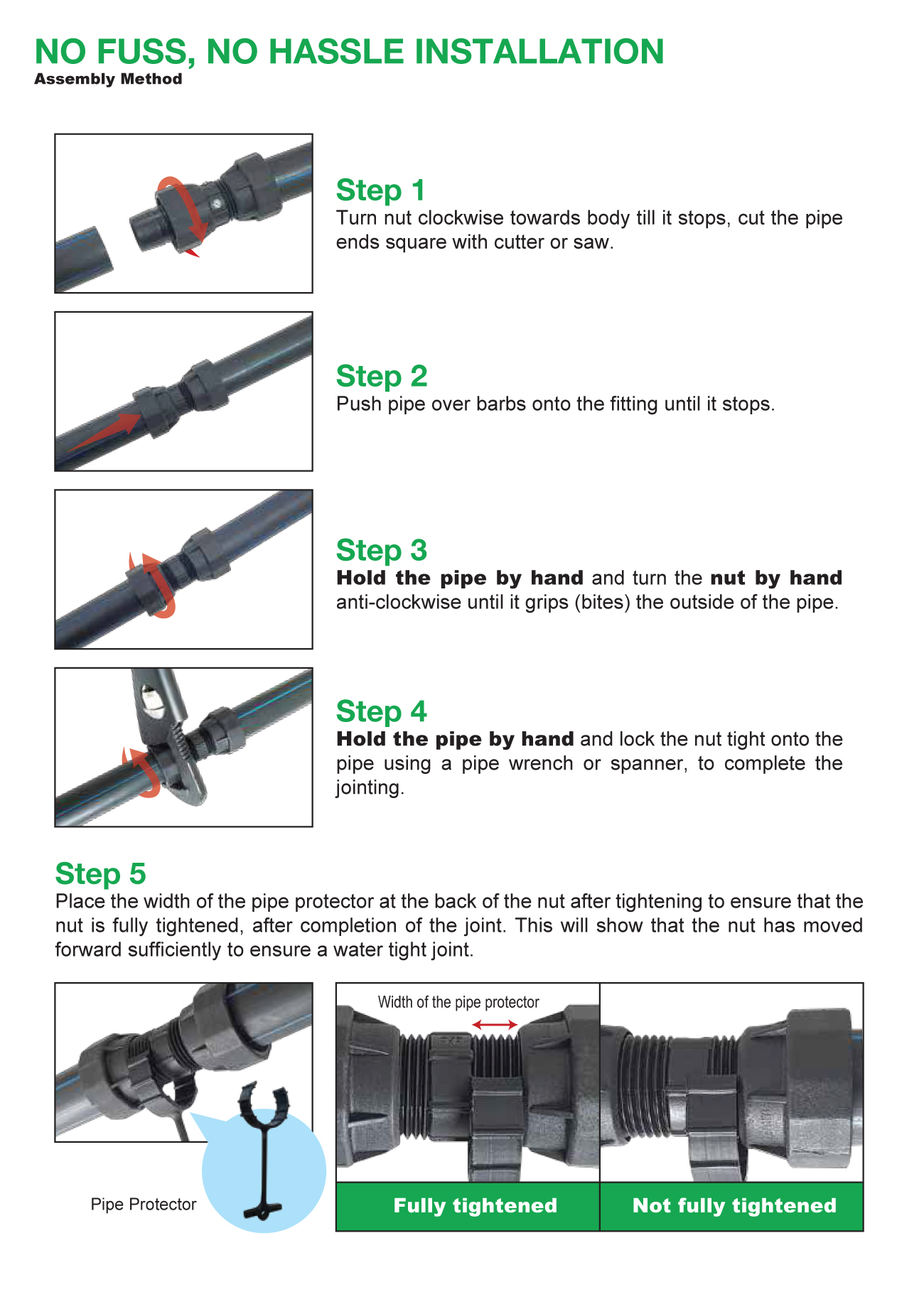

  • INSTALLATION METHOD

    HDPE PN16 FITTINGS INSTALLATION METHOD VIDEO

    HDPE PN12.5 FITTINGS INSTALLATION METHOD VIDEO

    HDPE PN10 FITTINGS INSTALLATION METHOD VIDEO

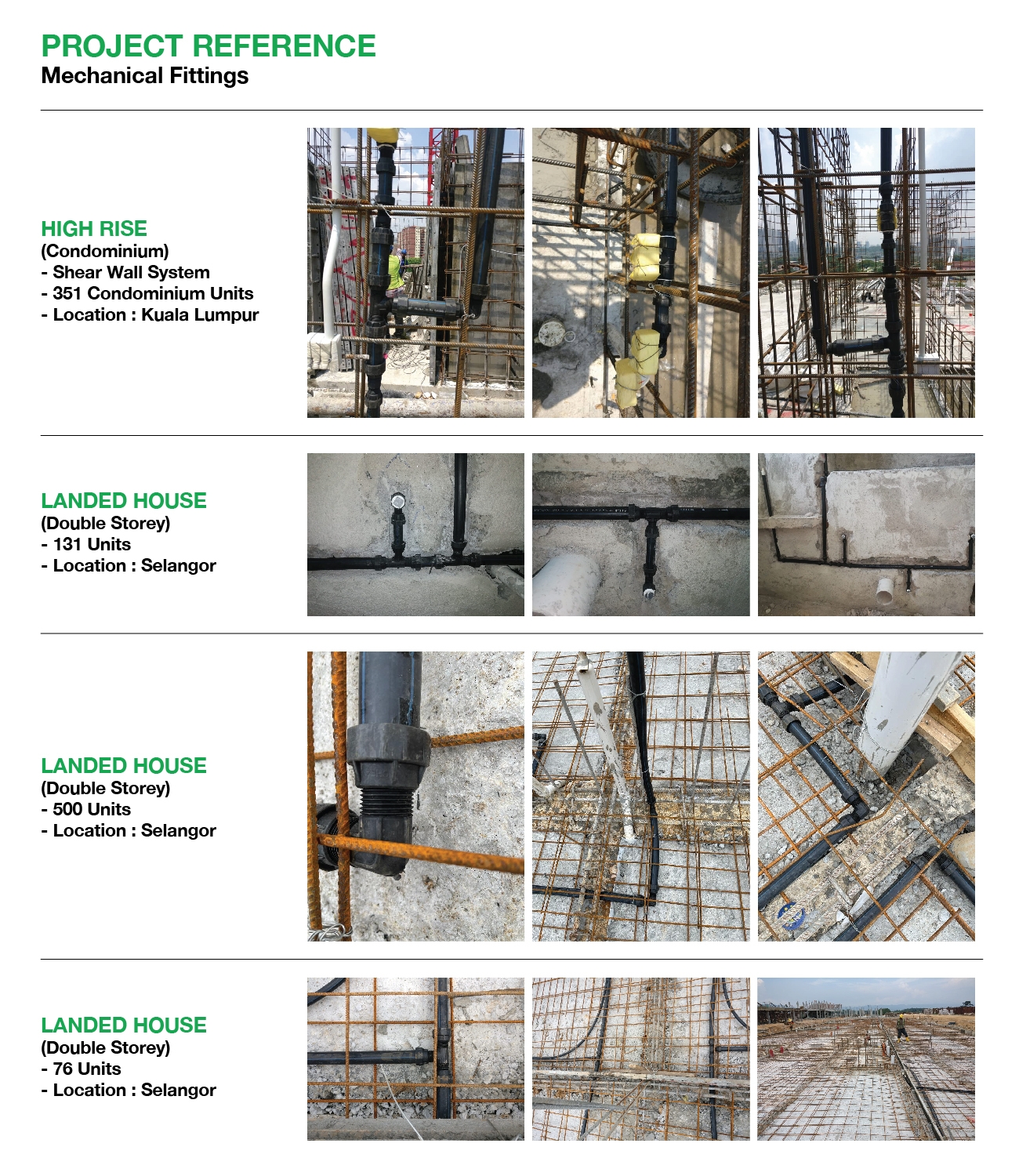

  • PROJECT REFERENCES

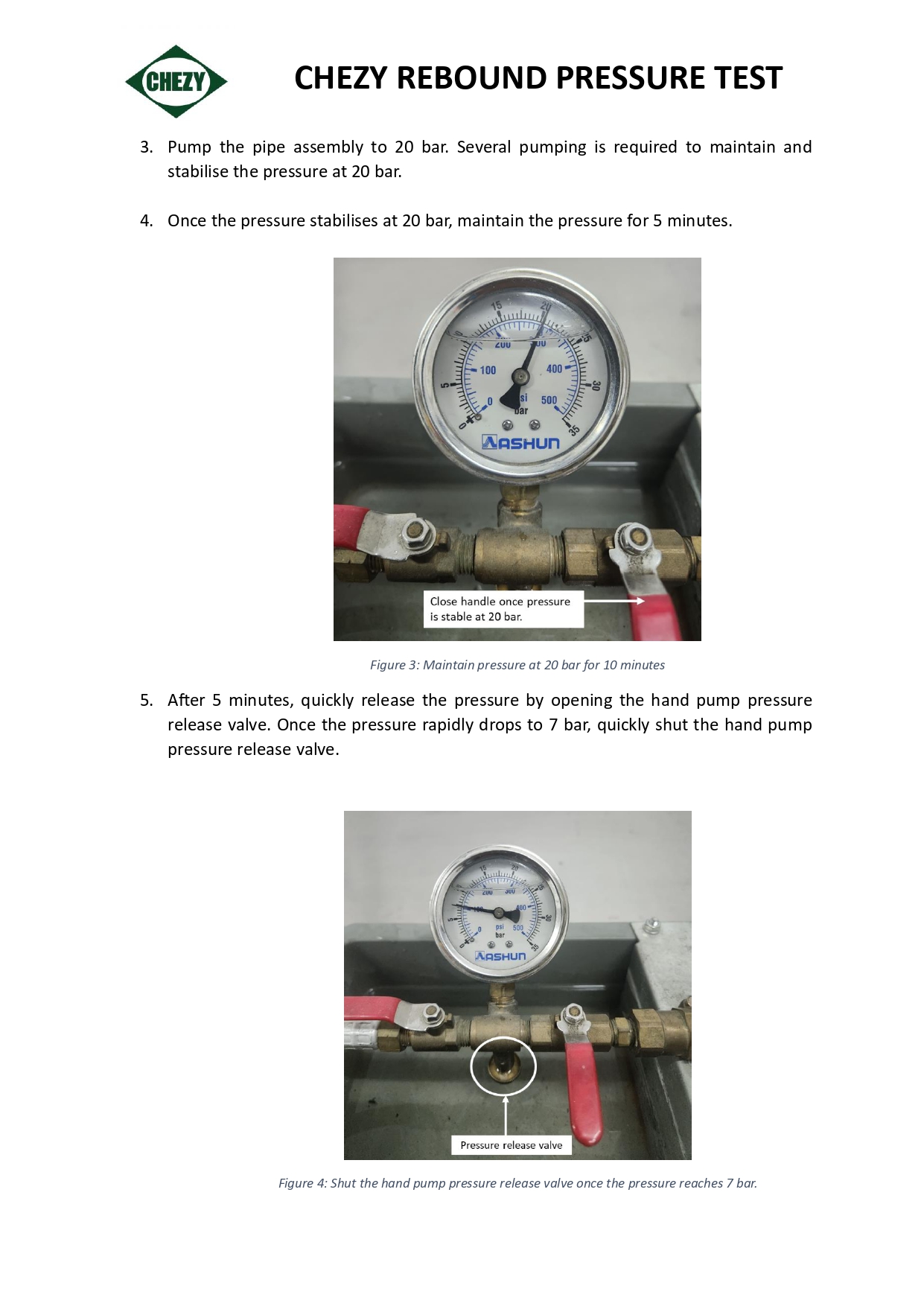

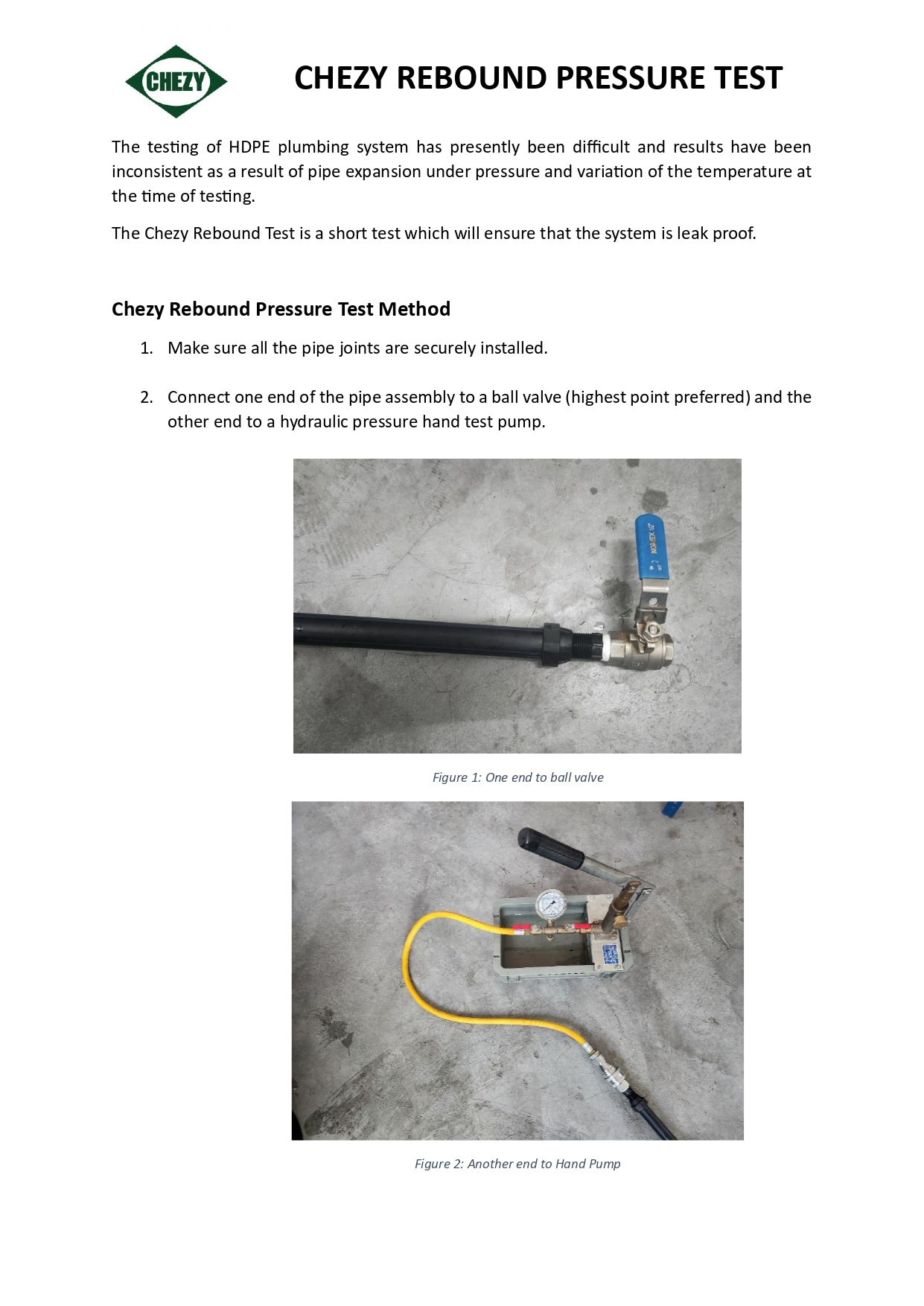

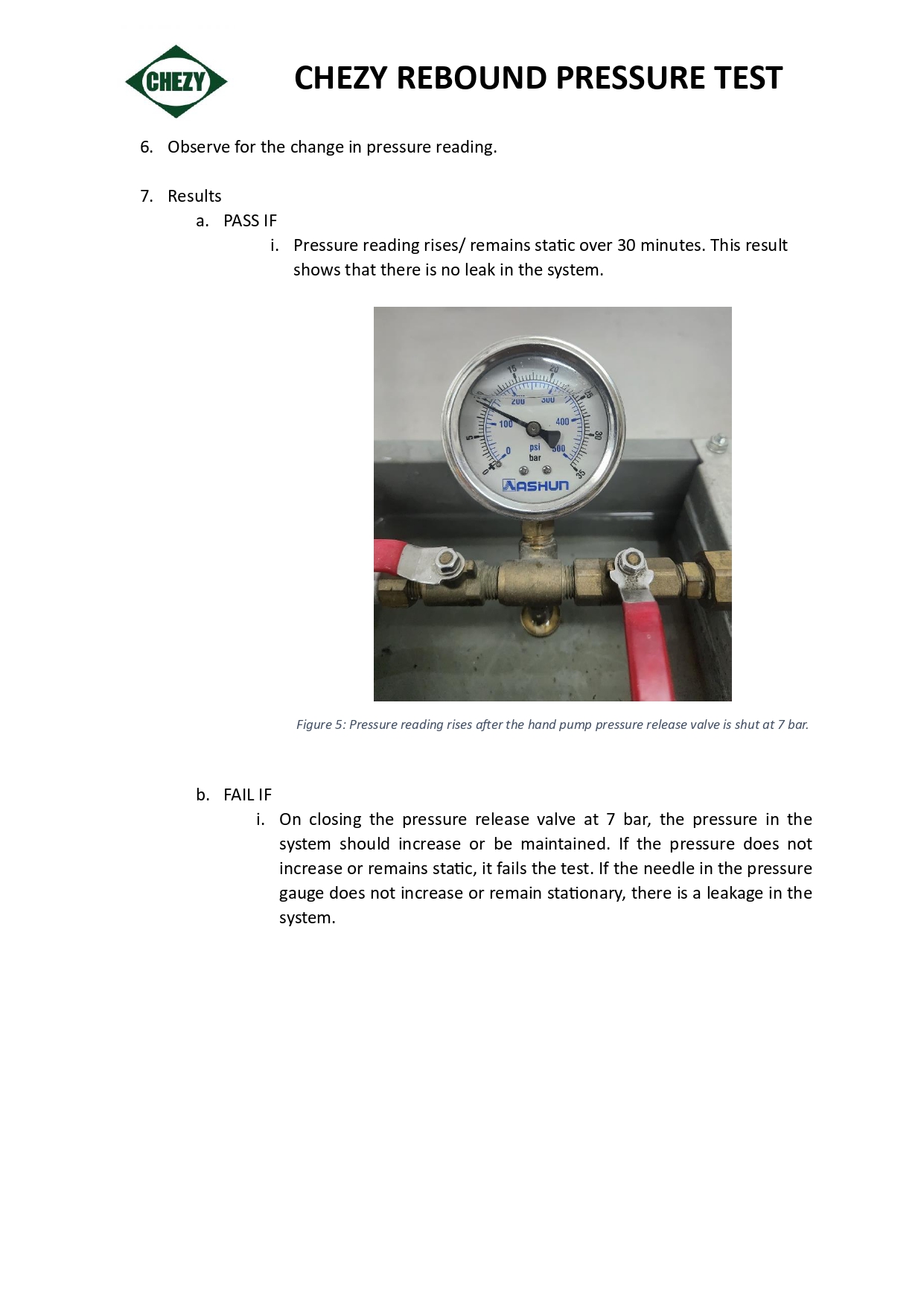

  • CHEZY REBOUND PRESSURE TEST
